Brass Rod D150mm Single Strand Horizontal Continuous Casting Machine Split Melting and Holding Furnace

Name: Brass Rod D150mm Single Strand Horizontal Continuous Casting Machine Split Melting and Holding Furnace
Brand: Jingjie
Price: 1 USD

Buy cheap Brass Rod D150mm Single Strand Horizontal Continuous Casting Machine Split Melting and Holding Furnace product

Brand Name : Jingjie

Model Number : HCCM

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Price : negotiation

Payment Terms : T/T or L/C

Supply Ability : 10sets per month

Delivery Time : 30 working days after received your payment

Packaging Details : Packed in wooden case for outer packing

Product material : Brass

Product : Rod

Product diameters : Φ150mm

Type : Horizontal

Length : 6m

Furnace type : Melting and holding split furnace

Melting furnace capacity : 0.5-3T

Holding furnace capacity : 0.5-3T

Contact Now

Product Description

Product Application

Horizontal continuous casting machine is mainly used for brass/bronze bar,brass/bronze tube making.The materials can be pure brass/bronze ,scrap brass/bronze and other brass/bronze materials.

Main composed parts :

No	Items	Q’ty	Remarks
1	Split Type Furnace
	Melting Furnace	1SET		3-phase Balance Brand of Electrical Components: CHNT, Including furnace lining materials, 1SET
	Electrical System of Melting Furnace	1SET		3-phase Balance
	Hydraulic Furnace-Tilting System	1SET		Main Components: Qualified, Made in China
	Chute	1SET
	Holding Furnace	SET		3-phase Balance Brand of Electrical Components: CHNT, Including furnace lining materials, 1SET
	Electrical System of Holding Furnace	1SET		3-phase Balance
	Automatic Control System of Temperature	1SET		Including Thermalcouples and Protection Tube of Thermalcouple
	Furnace Face-plate of Mould	2PCS		Ф(60～25)x(8～4.5)mm
	Refractory Bricks around Furnace Mouth	2/PCS		Silicon Carbide
2	Crystallzer One use one standy	8SETS		Including Graphite Dies(20sets) and Dummy Bar and Dummy Bar Head
3	Upholding Roller between Caster & Tractor	1SET
4	PLC Servo Auto CCM
	Continuous casting machine	1SET		Made by the Manufacturer
	PLC Servo motor and Auto Control Cabinet	1SET		Servo-motor:4.4KW Yaskawa,Japan
5	Auto-tracking Cutting Machine	1SET
6	Cutting System of Mold Replacement	1SET
7	Pneumatic Tilting (Storage) Table	1SET		Effective Length:6Meters
8	Cooling Water Dispenser	2SETS		Warning Function of Water Pressure and Flow Rate

FOR BRASS BARS AND TUBES

Brass Rod D150mm Single Strand Horizontal Continuous Casting Machine Split Melting and Holding Furnace

Wuxi East China Furnace Co.,Ltd

No.3 Bashi Furong Industrial Park,Xishan District,Wuxi City,Jiangsu Province,China

Contact person: Joey.Wong

Tel: +86 510 83788308

Fax: +86 510 83786308

Mob: +86 139 2112 5611

Wechat: 86 139 2112 5611

Whatsapp: 86 139 2112 5611

joey@wxhddl.cn

Product Tags:

continuous caster machine

continuous casting machinery

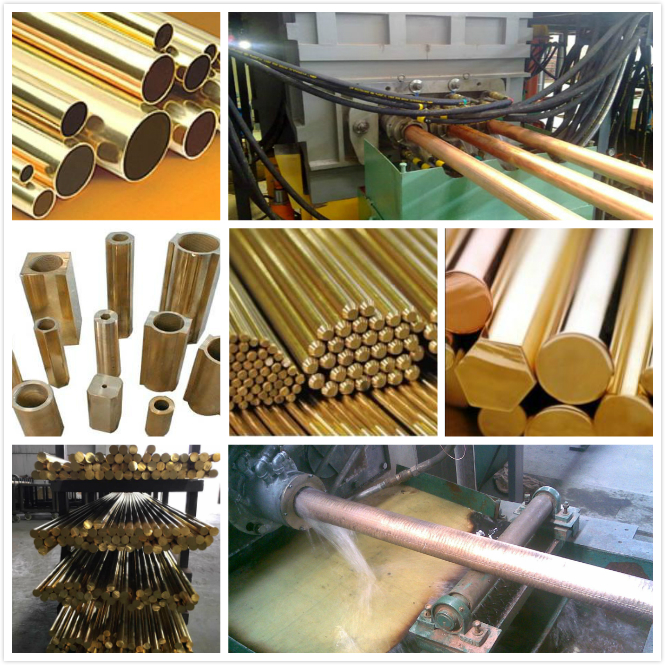

Brass Rod D150mm Single Strand Horizontal Continuous Casting Machine Split Melting and Holding Furnace Images
